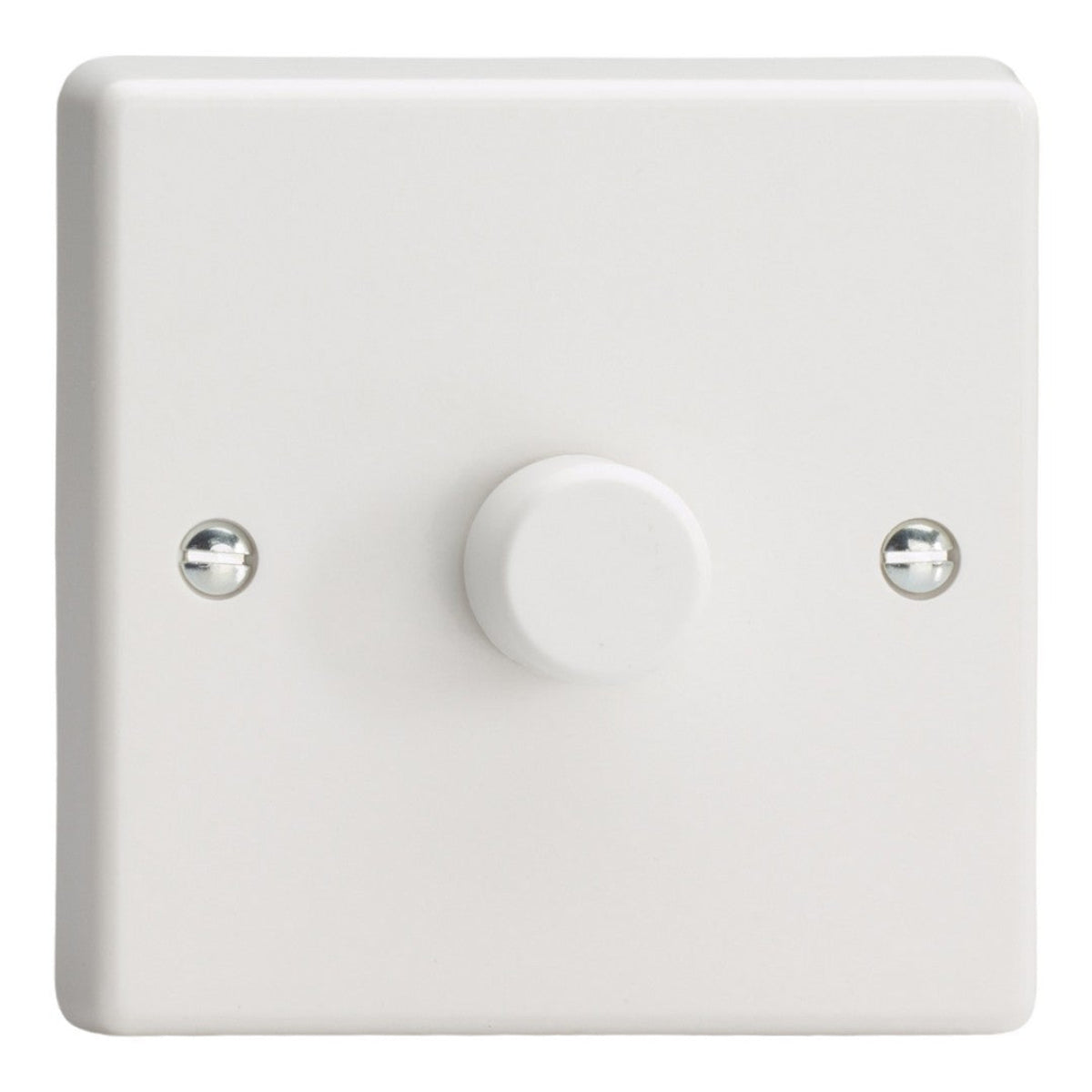

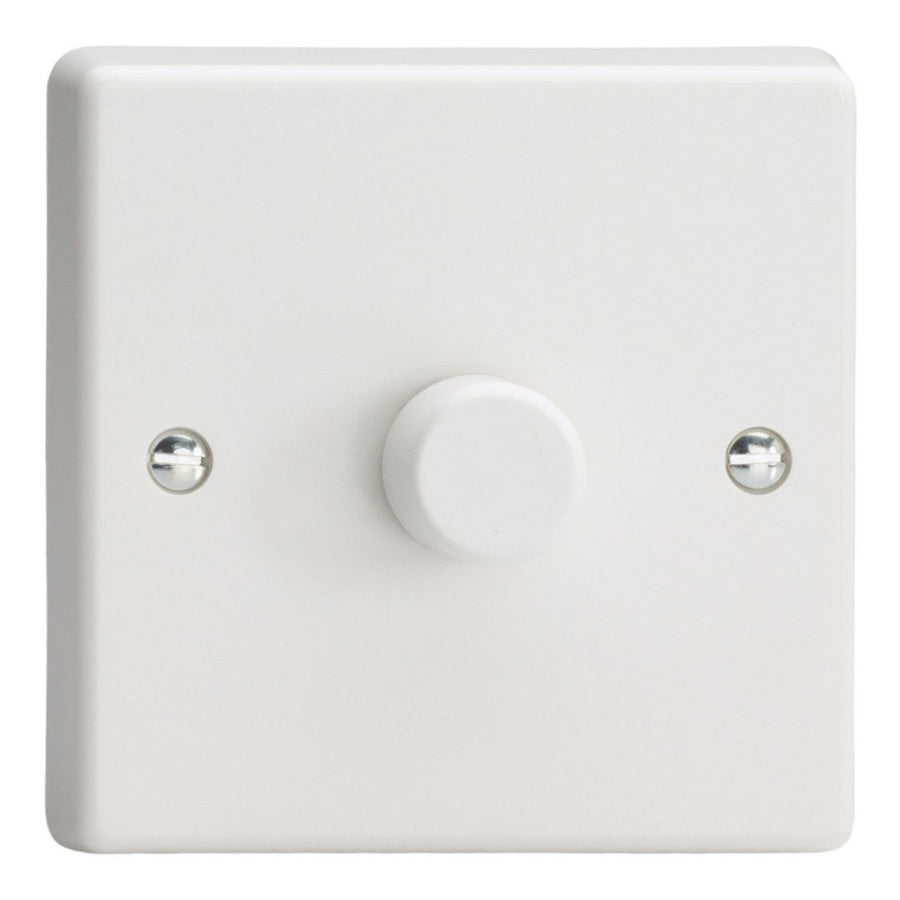

Product Description: 1-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 1 x 0-120W
Range: White
Finish: White Plastic
Product Category: LED Dimmers Insert/Knob
Colour: White Knob

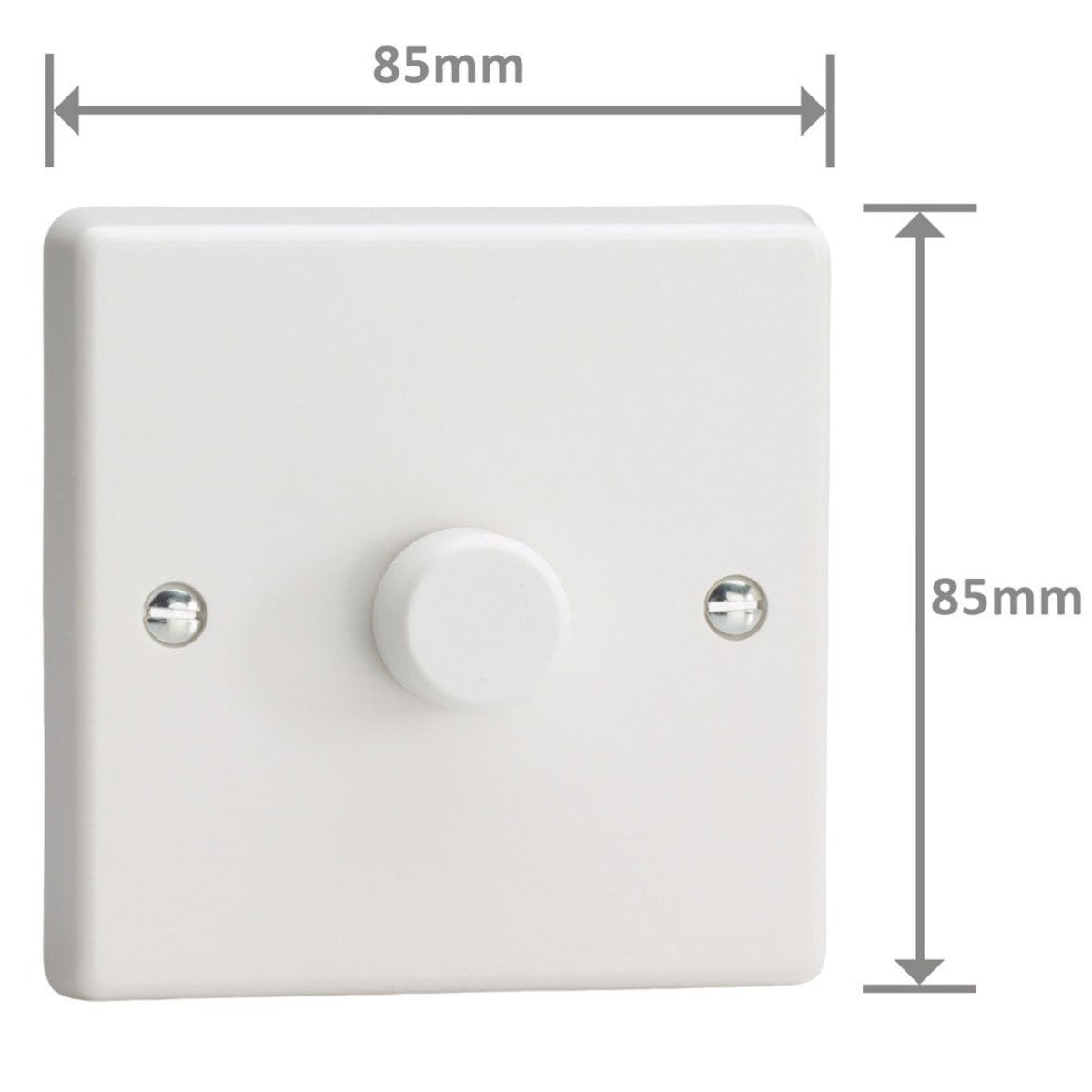

Dimensions: 85x85x47mm
Faceplate Depth: 11mm
Net Weight: 106g
Gross Weight: 108g
Fixing Centres: 60.3mm
Depth from Mounting Face: 16.1mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED: 120W
Maximum Current Rating: 1.3A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
